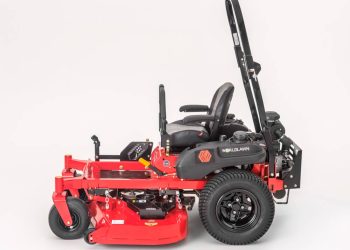

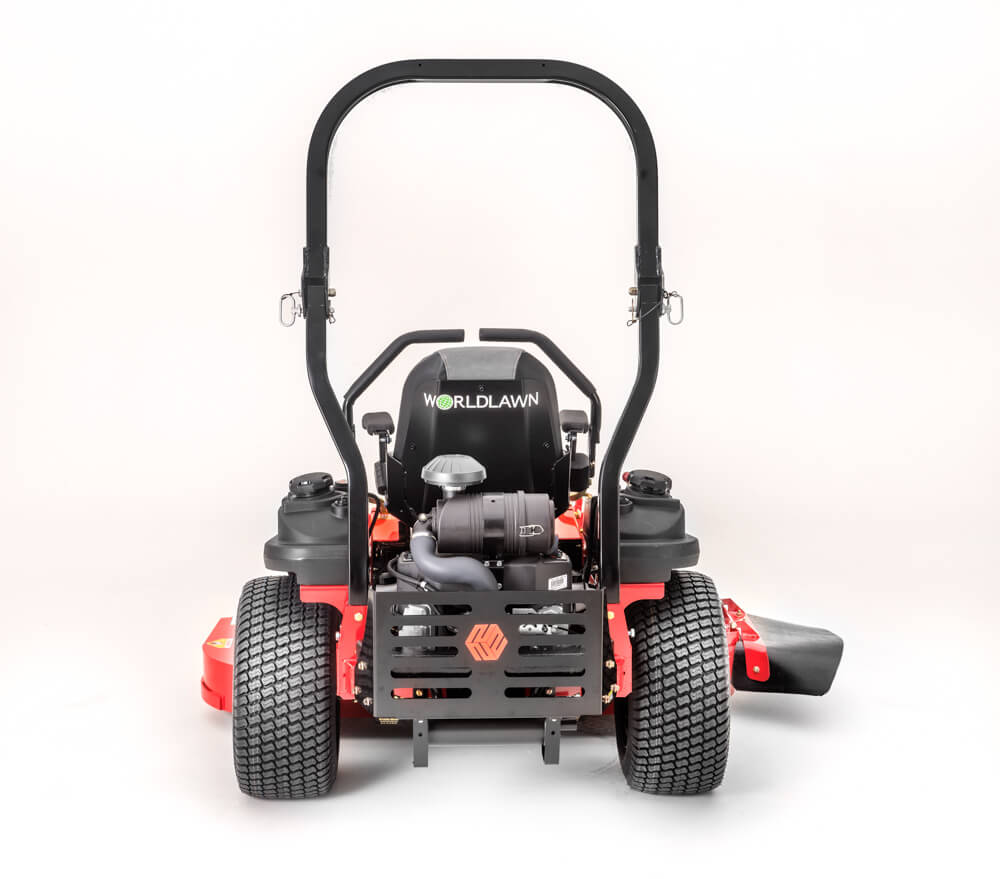

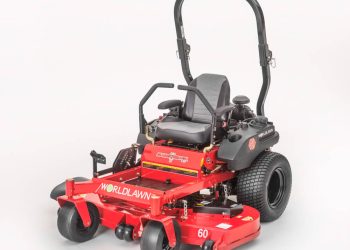

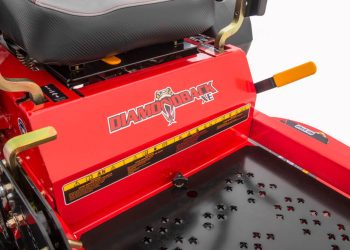

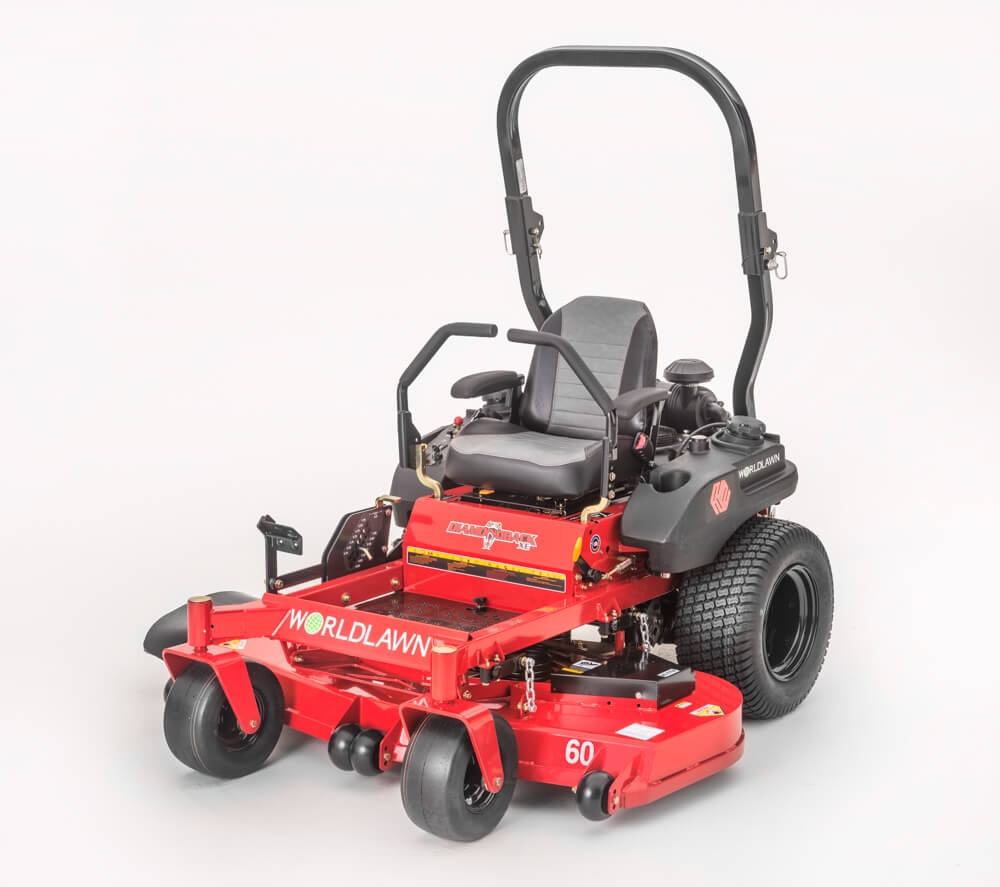

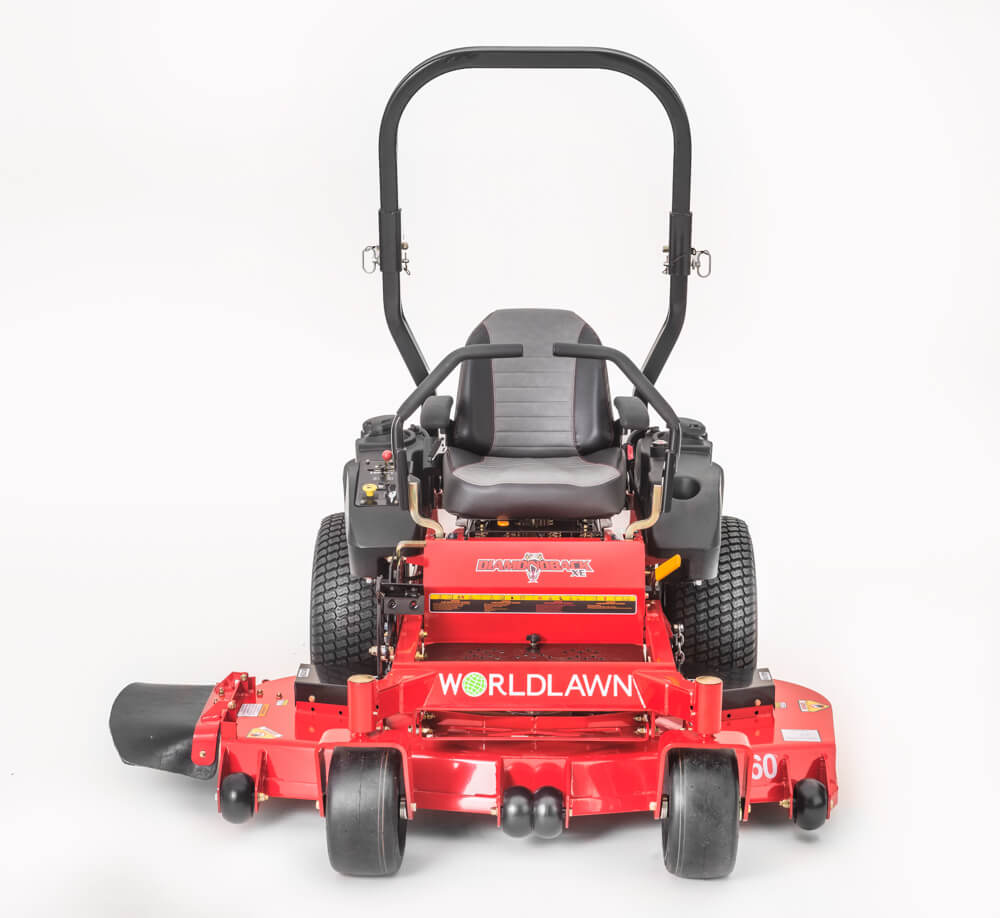

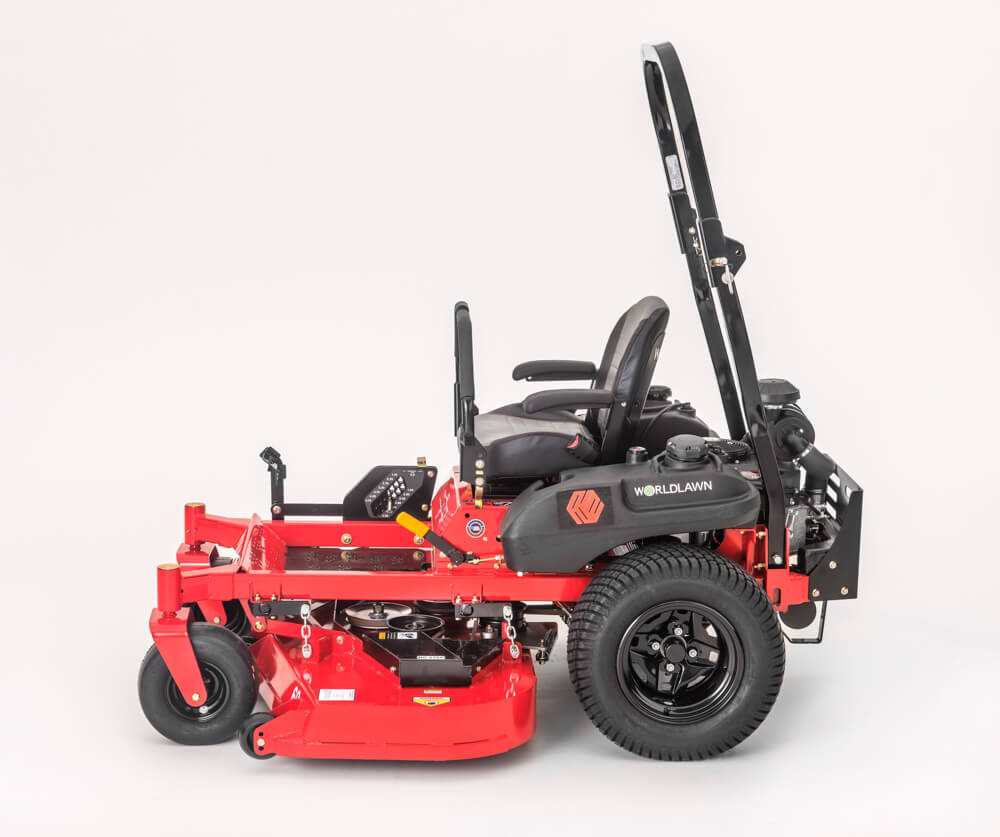

The Diamondback XE is a commercially built and consumer priced workhorse. With a FX Kawasaki Series engine and Hydro-Gear ZT-3400 transmission to give you added durability, a fast and smooth ride is guaranteed every time. An added GDI digital console that offers a soft start PTO switch, lost keys will not be a problem again. With a three-year limited warranty, you will come to love the reliability, exceptional value, and world proven performance that Worldlawn provides.
10 Years Deck Shell Warranty
3 years commercial warranty
1 year commercial warranty
Hydro-Gear transmissions
R.O.P.S. standard
Triple-layer spindle support
Discharge, mulch, or collect
FR Kawasaki Series on Diamondbacks
FX Kawasaki Series on XE
| Feature | WYDB48FX691V34P | WYDB52FX691V34P |
|---|---|---|
| MODEL | WYDB48FX691V34P | WYDB52FX691V34P |
| LENGTH | 1966 mm | 1966 mm |
| WIDTH | 1524 mm | 1663 mm |
| WIDTH W/ DEFLECTOR UP | 1224 mm | 1346 mm |
| WHEELBASE | 1282 mm | 1282 mm |
| WHEEL TRACK WIDTH | 1194 mm | 1257 mm |
| WEIGHT | 425 kg | 431 kg |
| FRONT TIRES | 13-5.00 x 6 smooth | 13 – 6.50 x 6 smooth |
| REAR TIRES | 23-9.50 x 12 turf | 23 – 10.50 x 12 turf |
| DECK MATERIAL | 8ga. Steel | 8 ga. Steel |
| CUT WIDTH | 48 | 52 |
| CUTTING HEIGHTS | 1.5″-4.75″ | 1.5″-4.75″ |
| PTO | Electric | Electric |
| FUEL CAPACITY | 36 lts | 36 lts |
| ENGINE BRAND | KAW | KAW |
| ENGINE HP | 22 | 22 |
| FORWARD SPEED | 16 kph | 16 kph |
| POWERED REVERSE | Yes | Yes |
| BLADES | 3 – 16.25″ | 3 – 18″ |
| TRANSMISSION | Hydro-Gear ZT-3400 | Hydro-Gear ZT-3400 |
| Specification | Value |
|---|---|
| MODEL NUMBER | WYDB60FX730V34P |
| LENGTH | 1966 mm |
| WIDTH | 1854 mm |
| WIDTH W/ DEFLECTOR UP | 1550 mm |
| WHEELBASE | 1282 mm |
| WHEEL TRACK WIDTH | 1257 mm |
| WEIGHT | 463 kg |
| FRONT TIRES | 13 - 6.50 x 6 smooth |
| REAR TIRES | 23 - 10.50 x 12 turf |
| DECK MATERIAL | 8 ga. Steel |
| CUT WIDTH | 60 |
| CUTTING HEIGHTS | 1.5" - 4.75" |
| PTO | Electric |
| FUEL CAPACITY | 36 lts |
| ENGINE BRAND | KAW |
| ENGINE HP | 23.5 |
| FORWARD SPEED | 16 kph |
| POWERED REVERSE | Yes |
| BLADES | 3 - 20" |
| TRANSMISSION | Hydro-Gear ZT-3400 |
